Toothpaste Hot Air Automatic laminate Tube Filling and Sealing Machine

FOB Reference Price:Get Latest Price
$14,000.00 - $14,500.00 / Set | 1 Set/Sets (Min. Order)
Power:
3.5KW
Model Number:
KP350-B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Tube
Packaging Material:
Plastic, laminate tube filling and sealing machine
Type:
Filling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Place of Origin:
Jiangsu, China
Brand Name:
WANKA
Voltage:
220V/50Hz/1P
Application:
Food, Medical, Chemical, laminate tube filling and sealing machine
Weight:
450KG
Automatic Grade:
Automatic
Certification:
CE ISO
Driven Type:
Electric
Dimension(L*W*H):
1800mmx800mmx1500mm
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, laminate tube filling and sealing machine
Key Selling Points:
High-accuracy
Product name:
laminate tube filling and sealing machine
Function:
Filling Sealing Date Printing
Air pressure:
0.6-0.8MPa
Material:
Stainless Steel
Filling Range:
5-50ml ,50-100ml ,100-250ml
Filling speed:
30-40pcs/min
Filling nozzles:
Choice
Filling Accuracy:
Within 1%
Control:
PLC+ Touch Screen
Keywords:
laminate tube filling and sealing machine
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing for Toothpaste Hot Air Automatic laminate Tube Filling and Sealing Machine.
Port
SHANGHAI
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated





Product Description



Toothpaste Hot Air Automatic laminate Tube Filling and Sealing Machine





Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine



-Working flow of the filling sealing machine:



1.      Automatic tube loading

2.      Automatic benchmarking (Cursor positioning)

3.      Automatic tube filling sealing & No tube no filling

4.      Automatic heating sealing (Inner heating)

5.      Material hopper can heating and stirring (optional)

6.      Automatic printing the batch dates code

7.      Automatic cut the over part after sealing then output finish product

8.      European accessories like Siemens, Omron and Schneider etc.



 - Technical parameter of filling sealing machine:

Model
KP350-B
Power
220V/380V
Tube dia
13-50mm
Filling range
5~50ml,50ml~250ml
Tube length
50-250mm
Precision
±1%
Speed
30-45pcs/min
Hopper size
30-50L
Application
plastic tubes and laminated tubes (Competitive price automatic tube filler sealer machine, skin care tube filling machine)
Filling material
Paste & cream& glue viscous liquids
Filling method
Piston filling & peristaltic pump
Sealing technology
 Hot air heating
Working flow
Tube feeding automatic + mark orientation - measurable dosing + Tail sealing + code embossing + tail trimming -auto output to conveyor or carton

 -Details about filling sealing machine:

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

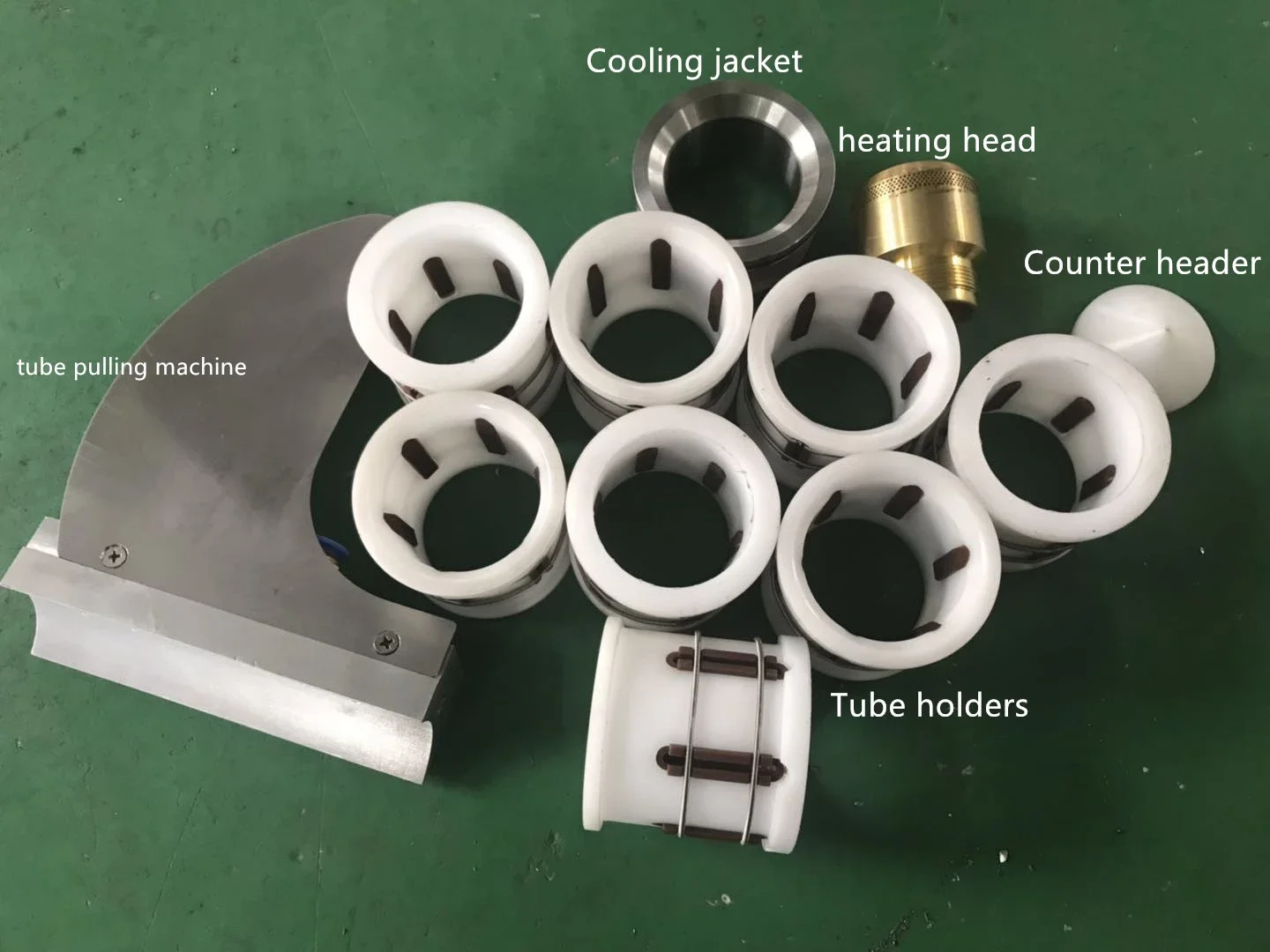

 -Change parts for different diameter of the tube:

The filling sealing machine will come with one set mold , the max dimater of the tube filling machine can

do is 50mm ,if you have different diameter of the tube , you just need to change the molds: tube pulling

machine ,tube holder,Counter header cooling jacket and heating head , one diameter need one set mold .

it's easy to change it.



Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

-Maintenance and clean of the filling sealing machine:

The filling sealing machine is maintenance-free ,Just pay attention to the daily cleaning , and if you want to different material , you could clean the filling head, hopper and  cylinder block ,

These parts are connected with clamps and are easy to disassemble.

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

- Date and batch number coding :

   The filling sealing machine  can print date and batch number on the tail of the tube .

The machine willcome with the letters ,the client could Combine date or batch number as needed.

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

-The warranty for filling sealing machine:

The Guarantee of the tube filling machine is 12 months for the whole machine. During the warranty period,should any problems/defaults happen, free parts will be sent out in 2 working days (stock spared) and 7

working days(customized spares) by DHL, TNT or FedEx.



-The configures of the filling sealing machine:

 Kingpack machinery  insist on going to the mid-and high-end market, and all of the configurations we use adopt well-known brands both at home and abroad,

we use we use Taiwan Delta touch screen, frequency converter, PLC,Swiss  LEISTERLE hot air gun,Korea Autonics ,Japan Omron,French Schneider,Taiwan AirTac.

Application:

In addition to being used in the cosmetics industry, filling and sealing machines can also be used in the following industries:

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

Machine accessories

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine



Company Information



Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine



Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine





Our team:

Automatic toothpaste , cosmetic , ointment plastic tube filling and sealing machine

Our Services



Packaging & Shipping



FAQ

<1>What should I do if we are not able to operate the machine when we receive it?
 Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.
 <2>How could I get the spares on machines?

 We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

 <3>How can I ensure that I get high-quality machine?

As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

 <4>Is there any insurance to guarantee I will get the right machine I pay for?
 We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
