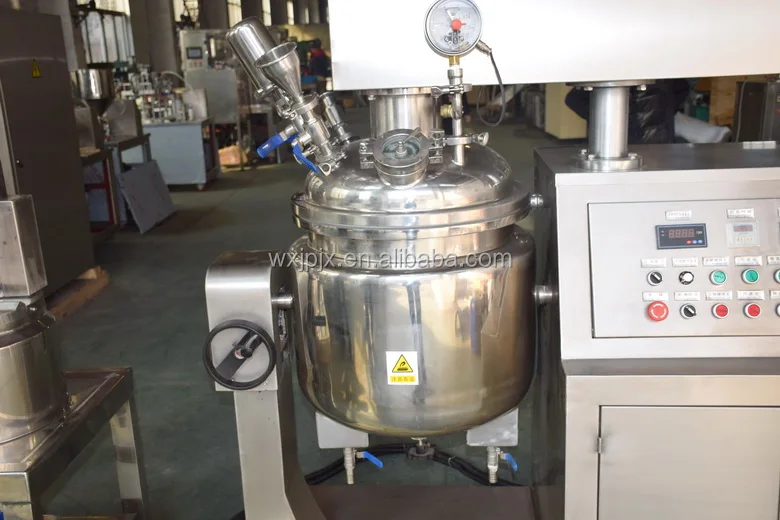

50L Cosmetic Cream vacuum homogenizing emulsifier mixing machine

FOB Reference Price:Get Latest Price
$5,000.00 - $16,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
KPZ-50L
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Barrel Volume (L):
50
Max. Loading Volume (L):
50
Max. Loading Capacity:
Customized
Weight (KG):
450
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Application:
Chemicals Processing, Viscous Fluid, Cosmetics, food, pharmacy, chemical
Condition:
New
Mixer Type:
Agitator, Agitator
Product Type:
Cosmetic, food, chemical, pharmacy
Additional Capabilities:
Heating
Place of Origin:
Jiangsu, China, China (Mainland)
Brand Name:
KINGPACK, KINGPACK
Voltage:
220V/380V, 220V/380V 50HZ Customized
Dimension(L*W*H):
Customized
Certification:
CE ISO
Power (kW):
1.8
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Automatic
Function:
Mixing
Material:
Stainless Steel
Name:
Emulsifier Mixer
Power(W):
Customized
Packaging & Delivery
Packaging Details
Standard export packing for 50L Cosmetic Cream vacuum homogenizing emulsifier mixing machine
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
PRODUCT DESCRIPTION

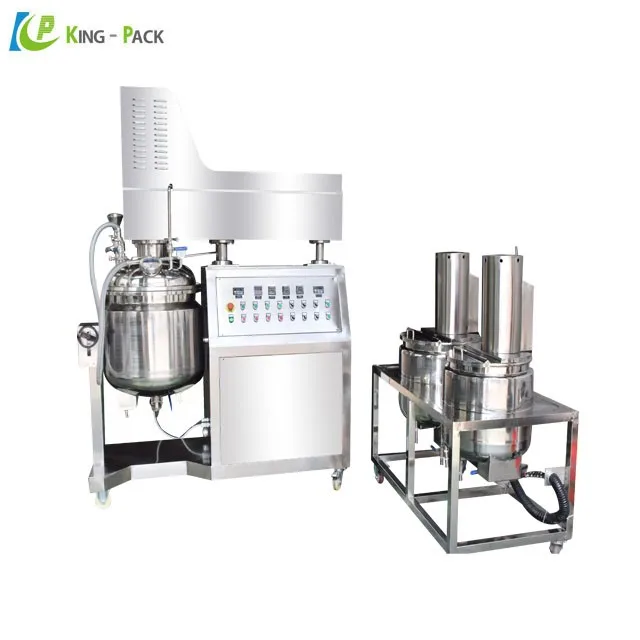

Cream vacuum homogenizing emulsifier mixing machine


vacuum emulsifying mixer, also called vacuum emulsifying machine, is a tilt-able vacuum mixer system for the production of viscous emulsions, dispersion's and suspensions in the cosmetic,pharmaceutical, food and chemical industries. It's the most popular vacuum emulsifier homogenizer design in Asia and US and is suitable for making small to medium batches of cream and emulsions.cosmetic vacuum emulsifying mixer for liquid cream

Model
Tank Capacity  (L)
Homogenizing speed(rpm)
Mixing speed(rpm)
Power(kw)
Vacuum Supply(MPA)
Dimension(mm)
KPZ-5
5
2900
0-86
0.55-1
-0.09
880*550*1430
KPZ-10
10
2900
0-86
0.55-1
-0.09
880*550*1430
KPZ-30
25
2800
0-86
0.75-2
-0.09
1450*600*1950
KPZ-50
40
2800
0-86
1.1-2
-0.09
1450*600*1950
KPZ-100
80
2800
0-86
1.1-6
-0.09
1750*650*2150
KPZ-150
120
2800
0-86
1.1-6
-0.09
1900*780*2380
KPZ-250
200
2800
0-86
2.2-12
-0.09
1850*1105*2480
KPZ-350
280
2800
0-86
2.2-12
-0.09
2000*1335*2750
KPZ-650
520
2800
0-65
4-18
-0.09
2500*1350*4560
KPZ-1000
800
2800
0-65
4-24
-0.09
2700*1350*4700
Application
Produce high-grade skin care products, pharmacy ointment and all kinds of soft cream
Working principle
With the functions to smash the molecules, make the product smooth and soft
Machine structure
Oil tank, water tank, vacuum homogeneous tank , heating system, mixing system, vacuum system, electric lifting system, operation control cabinet and piping system.

cosmetic vacuum emulsifying mixer for liquid cream

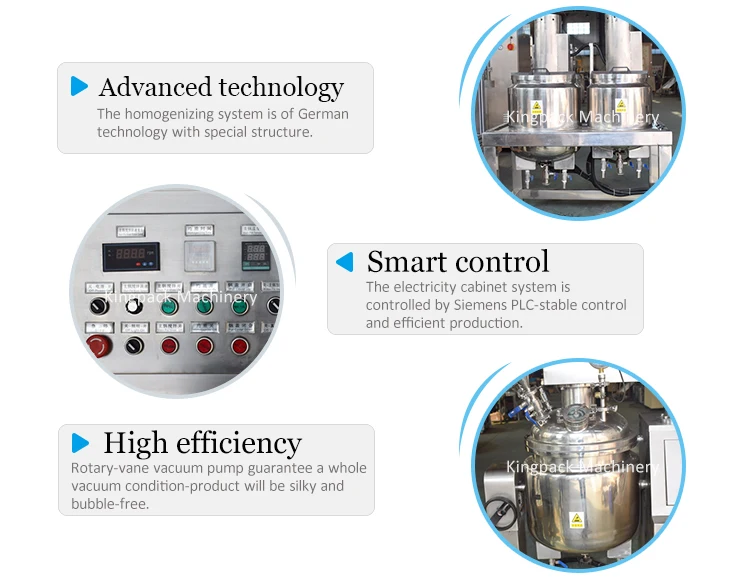

PRODUCT DETAILS

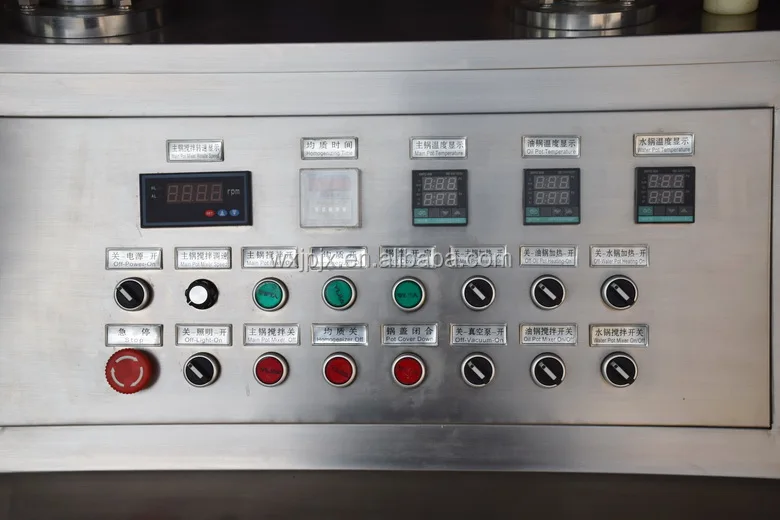

Electronics used are world-famous brands so that a low failure rate and long span can be guaranteed.


What is vacuum emulsifying mixer made of?

vacuum emulsifying machine is generally made of main emulsifying mixer, oil phase mixer, water phase mixer, vacuum system, hydraulic lifting system, tilting system for the main emulsifying mixer, heating and cooling system, temperature control system, electrical control panel etc.

The main emulsifying tank consists of a high speed rotor stator homogenizer and counter-rotating centre agitator and wall scraper. The homogenizer, centre agitator and wall scraper are all mounted from the top of the cover.

The oil and water phase mixers have exactly the same construction. There's a high speed disperser mounted from the top of the cover which helps dissolve the ingredients. Some customers will omit the oil and water phase mixers and keep the main emulsification machine only.

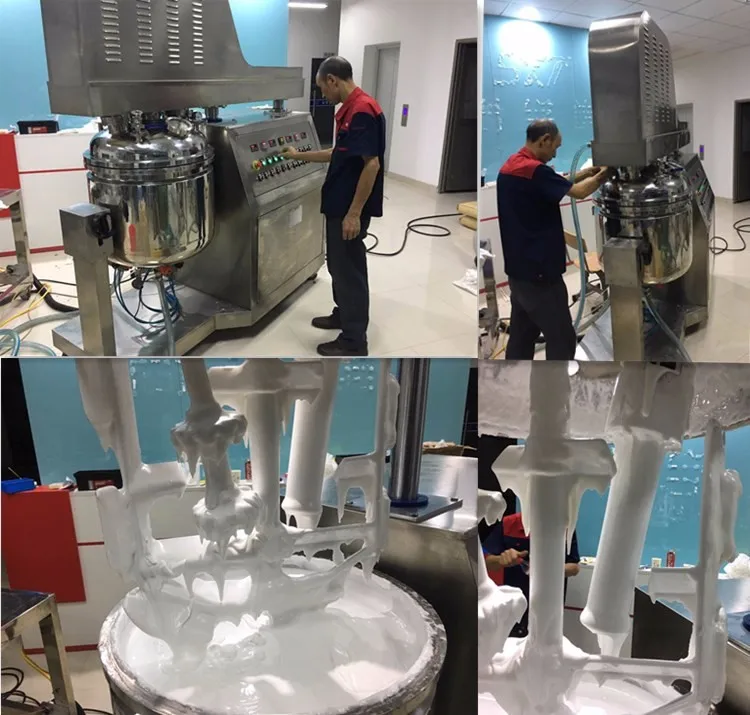

CUSTOMER PRAISE

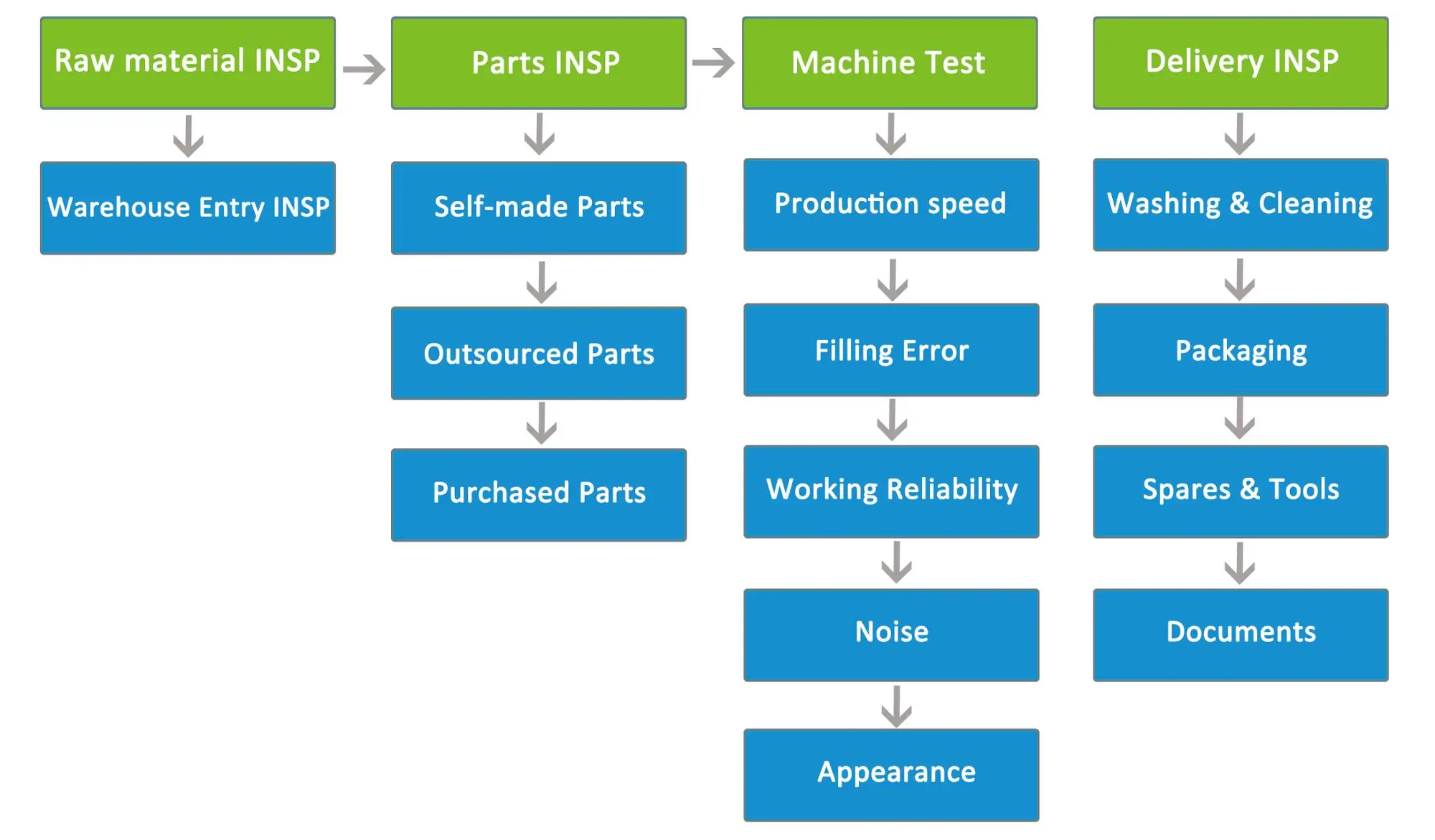

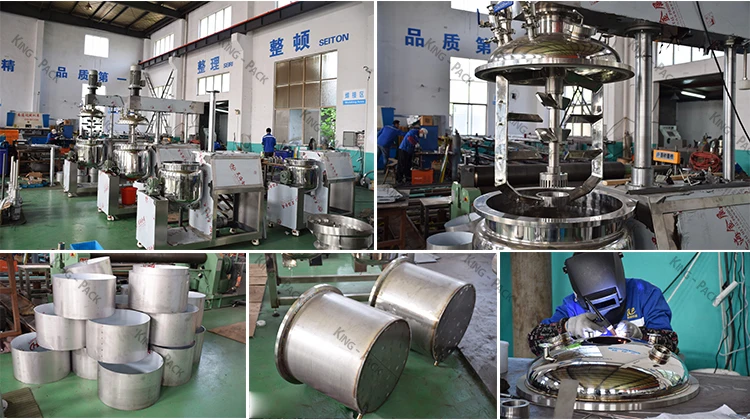

PRODUCTION & QC

KINGPACK - 100% Manufacturer

Quality Control, Quality Assurance and Cost Control, Lean Manufacturing

PACKAGING & SHIPPING
ABOUT KINGPACK

Wuxi Jingpai Machinery Co., Ltd is a professional manufacturer of complete equipment for cosmetics, pharmacy, food and chemicals based in Wuxi, China. We are a high-tech company which is engaged in the design, manufacture, sales, services and marketing promotion of packing and mixing machines globally.

All machines are designed to meet customers specific requirements (GMP for pharmacy factory) and can work smartly and smoothly at customer's site. We have creative design team to come up with the newest technology at times. Our products own ISO9001 qualification system and CE certificate.

FAQ

<1> What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.

<2> How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

<3> How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

<4> Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
