Aluminum tube filling and folding machine/ tube filling and sealing machine for adhesive

FOB Reference Price:Get Latest Price
$10,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1.75kw
Model Number:
KPLG-60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 12 Months
Packaging Type:
Tube
Packaging Material:
Metal
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
Condition:
New
Application:
Chemical, Commodity, Food, Medical, Cosmetics
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/50HZ
Place of Origin:
Jiangsu, China
Brand Name:
KINGPACK
Dimension(L*W*H):
1580*1200*1900mm
Weight:
400kg
Certification:
ISO, CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Easy to Operate
Product name:
Tube filling and sealing machine
Function:
Filling Sealing Date Printing
Material:
Stainless Steel
Control:
PLC+ Touch Screen
Tube type:
aluminum tube
Filling material:
Pharmacy,paste,cream cosmetic,adhesive
Filling speed:
30-45pcs/min
Filling volume:
5-50ml 50-100ml 100-250ml
Filling Accuracy:
Within 1%
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard wooden case for Aluminum tube filling and folding machine/ tube filling and sealing machine for adhesive.
Port
shang hai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
PRODUCT DESCRIPTION

Tube filling and sealing machine for adhesive

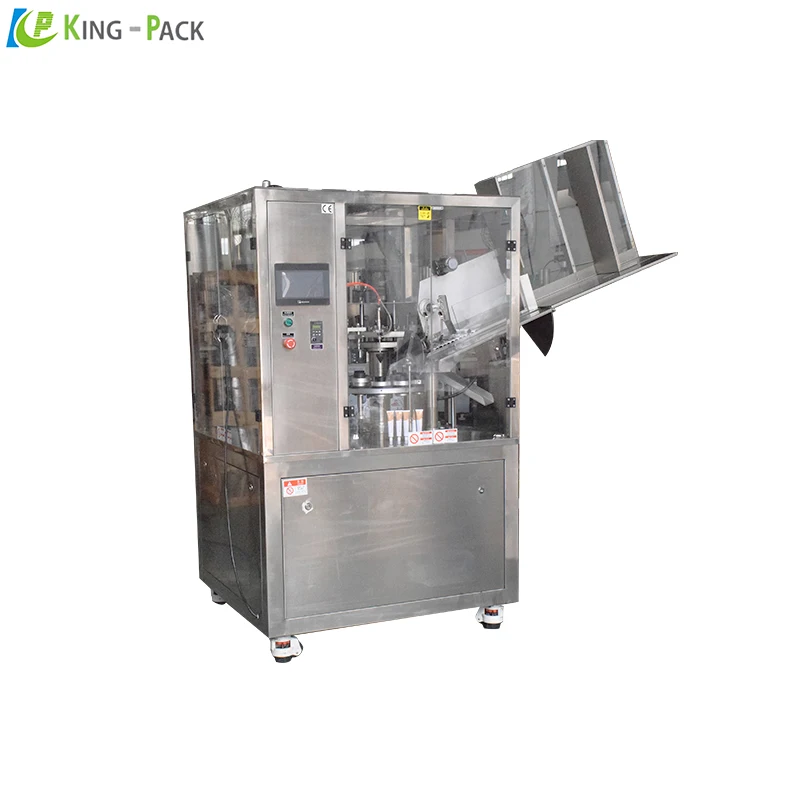

Tube filling and sealing machine, model KPLG-60


Automatic tube filling and sealing machine KPLG-60 is used for aluminum tube filling and sealing machine is specially design to fill all kinds of liquids and creams to metal tube and seal the tail , it is  mainly used in pharmacy , chemical and adhesive industries , such as ointment, shoe polish, paintings, silicon glue and AB glue etc

Key features of the tube filling and sealing machine:


-KPLG-60 is applicable to fill liquids and creams of different features, such as ointment, cream,pigment and adhesives,The automatic material feeding system is optional.

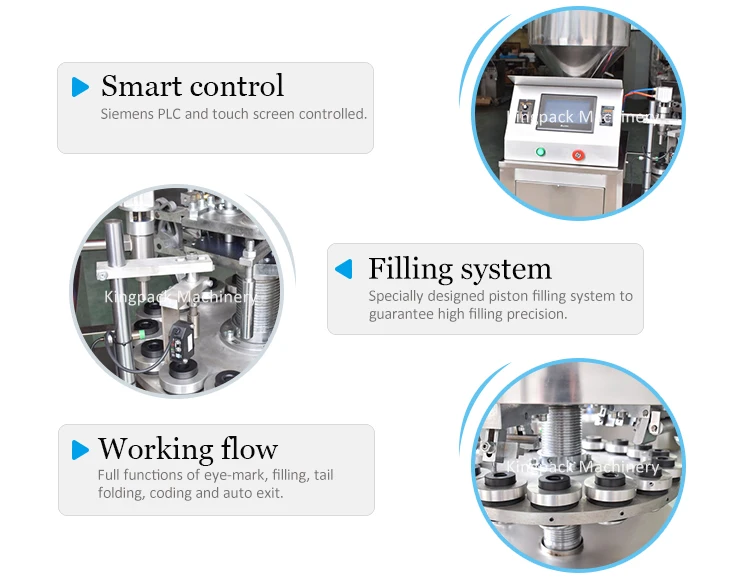

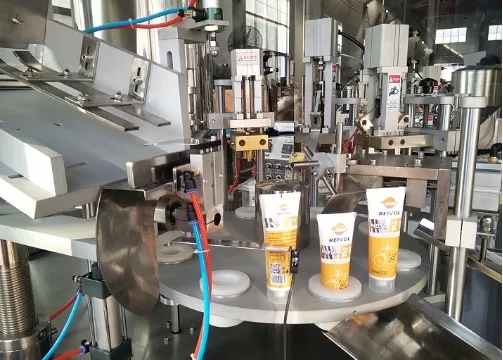

-Fully-automatic operations are realized from tube feeding, filling , tail sealing , number coding and self-ejection
-The machine has function of output count ,no tube no filling system, and protection system of failure warning
-The machine body are made of ss304 and ss316 is optional for material contact part.
-The filling system is assembled by couplings, easy to clean.

Piston system.

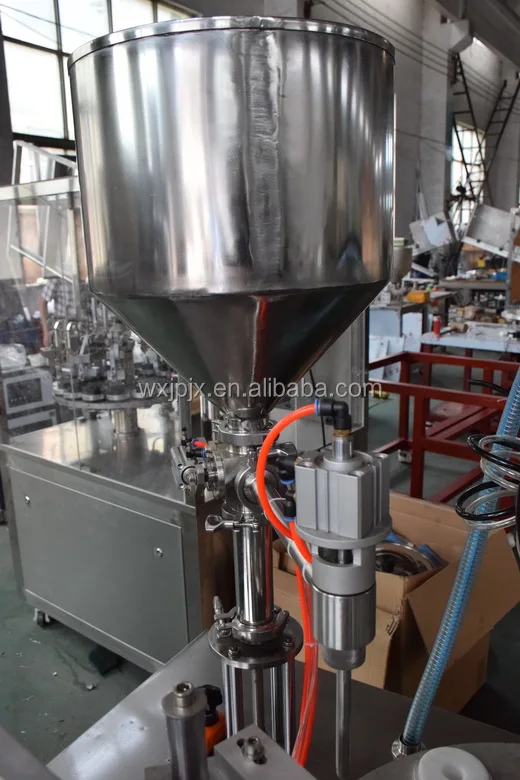

Hopper.

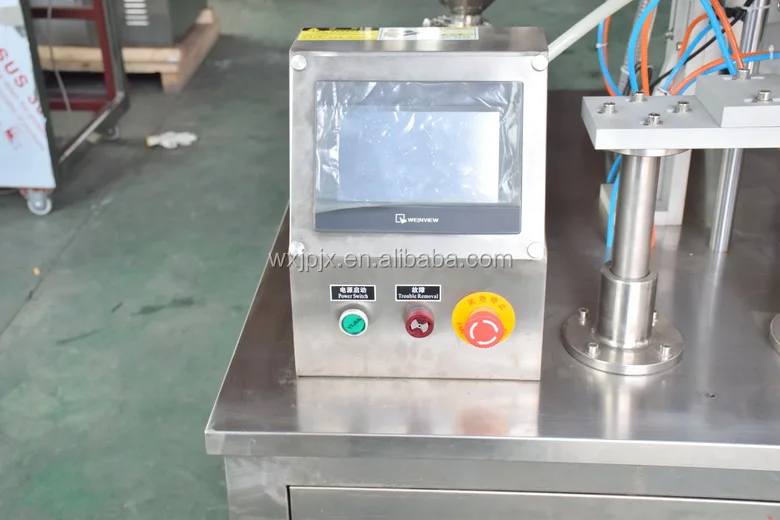

Touch screen.

PARAMETER AND BRAND
Model
KPLG-60
Power
220V/50Hz
Rate
1.75kw
Filling range
2g~200g
Tube dia
13-50mm
Tube length
50-250mm
Filling speed
30pcs~70pcs/min
Filling precision
±1%
Air source
0.6-0.8mpa
Hopper size
30-50L

Electronics used are world-famous brands so that a low failure rate and long span can be guaranteed.

APPLICATION

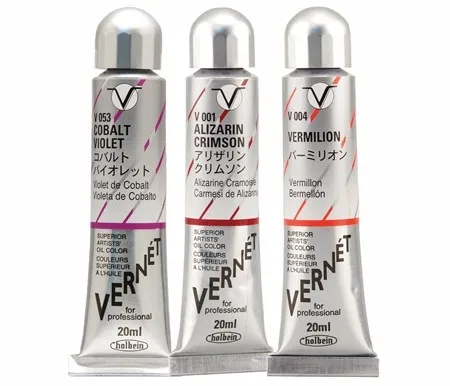

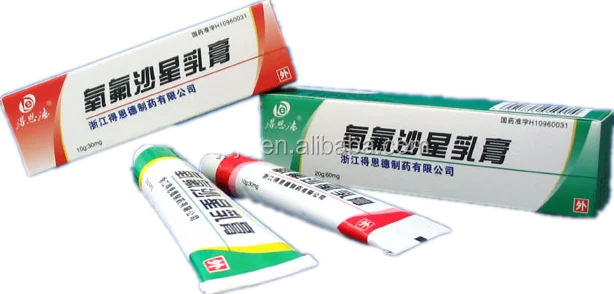

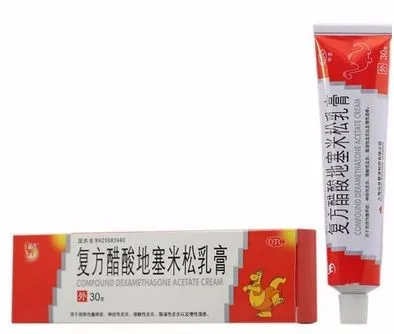

 Automatic aluminum tube filling sealing machine is mainly used in pharmacy , chemical and adhesive industries , such as ointment, shoe polish, paintings, silicon glue and AB glue etc

ABOUT KINGPACK

Wuxi Jingpai Machinery Co., Ltd is a professional manufacturer of complete equipment for cosmetics, pharmacy, food and chemicals based in Wuxi, China. We are a high-tech company which is engaged in the design, manufacture, sales, services and marketing promotion of packing and mixing machines globally.

All machines are designed to meet customers specific requirements (GMP for pharmacy factory) and can work smartly and smoothly at customer's site. We have creative design team to come up with the newest technology at times. Our products own ISO9001 qualification system and CE certificate.

FAQ

<1>What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.


<2>How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.


<3>How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.


<4>Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
