Automatic shoe polish, pvc glue filling and sealing machine

FOB Reference Price:Get Latest Price
$10,000.00 - $11,000.00 / Sets | 1 Set/Sets (Min. Order)
Power:
1.75kw
Model Number:
KPLG-60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year, 1 year
Packaging Type:
aluminum tube filling sealing machine
Packaging Material:
Metal, aluminum tube filling sealing machine
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, aluminum tube filling sealing machine
Condition:
New
Application:
Chemical, Commodity, Food, Medical, aluminum tube filling sealing machine
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/50HZ
Place of Origin:
Jiangsu, China
Brand Name:
KP
Dimension(L*W*H):
1200x800X2000MM
Weight:
400KG
Certification:
ISO9001 ,CE
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Easy to Operate
Product name:
tube filling sealing machine
Function:
Filling Sealing Date Printing
Material:
Stainless Steel 304/316
Keywords:
tube filling sealing machine
Control:
PLC+ Touch Screen
Air pressure:
0.4-0.6Mpa
Filling speed:
30-45pcs/min
Filling Accuracy:
Within 1%
Feature:
High Speed
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
bubble film + polywood case + vacuum package for Automatic shoe polish, pvc glue filling and sealing machine
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
PRODUCT DESCRIPTION
Model
KPLG
Power
220V/380V
Rate
1.75kw
Filling range
2-200g
Tube dia
13-50mm
Tube length
50-250mm
Speed
20-60pcs/min
Filling precision
≤±1%
Size
1580x1200x1900mm
Weight
400kg
Application
aluminum tube
Filling material
Grease & cream & toothpaste& glue &paint
Filling method

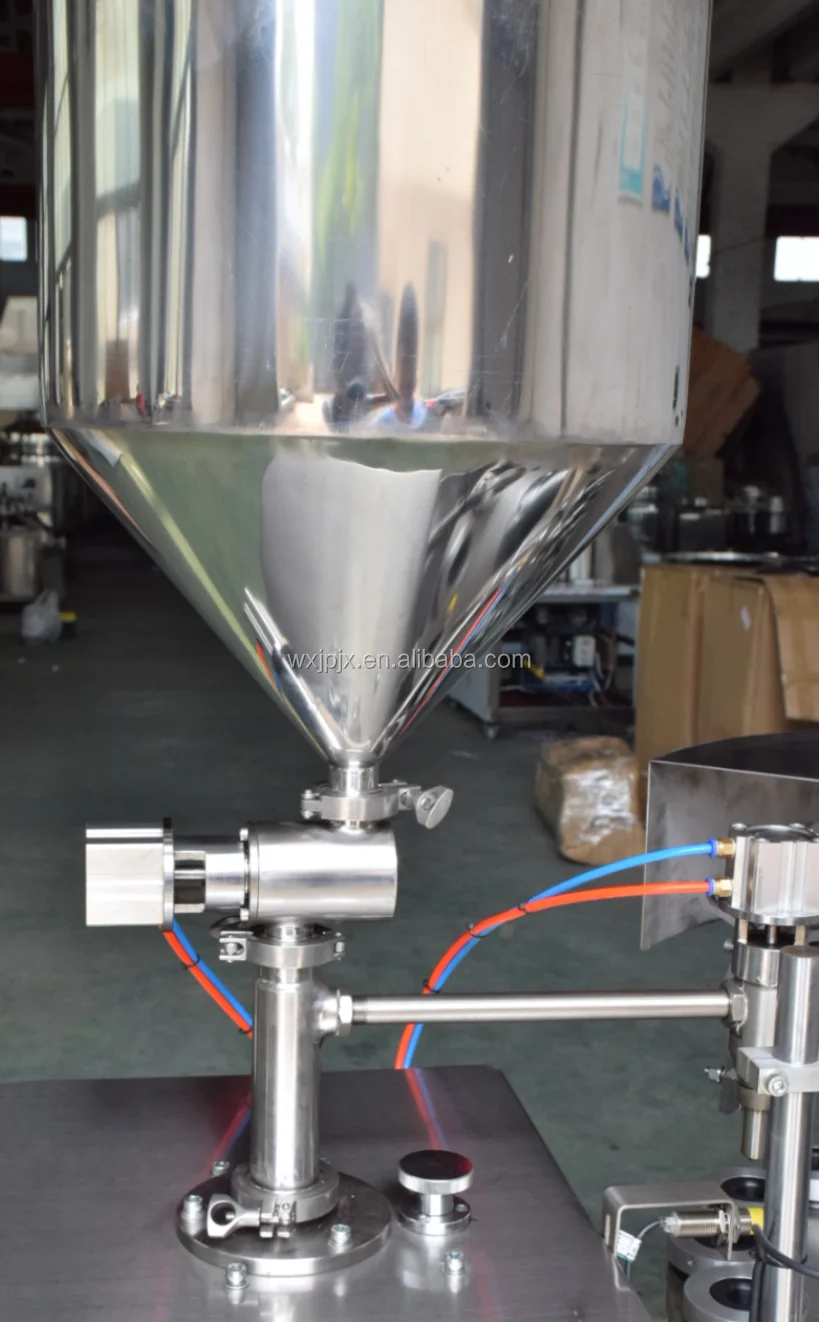

Piston filling & peristaltic pump
Tail sealing
by folding the tail in 3 or 4 layers, customized style
Working flow

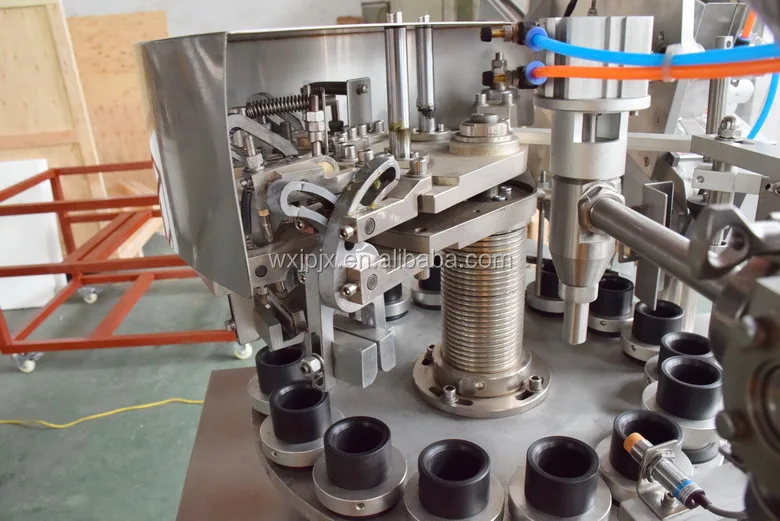

Tube sorting and feeding + mark orientation - measurable dosing + Tail press flat - tail folding + code pressing -auto output to conveyor or carton

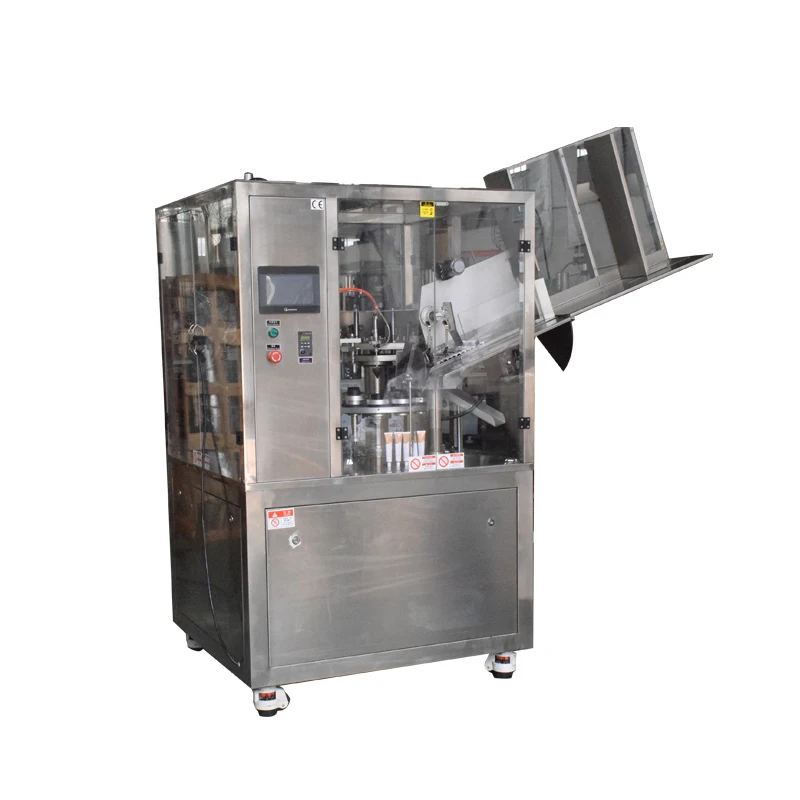

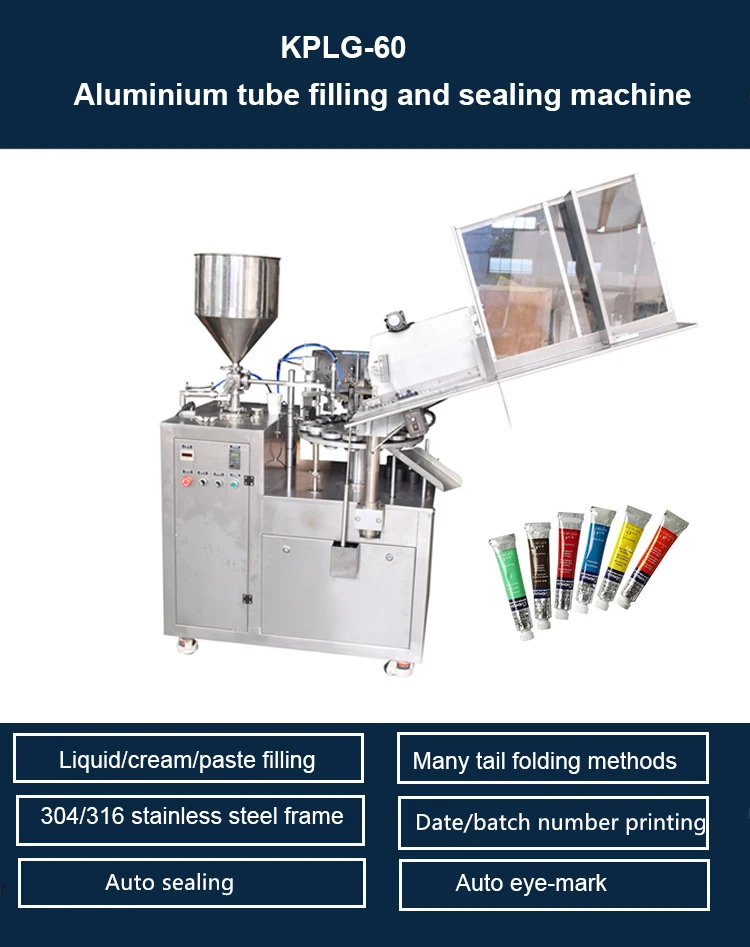

KPLG-60 automatic aluminum tube packing machine

KPLG series is specially designed to fill all kinds of liquids and creams into metals tubes and seal the tail. It is applicable to fill liquids and creams of different features, such as ointment, cream, pigment, shoe cream and adhesives. The automatic material feeding system is optional. The filling system is assembled by couplings,  easy to clean. One machine can be used for different sizes of tubes and capacity with customized moulds.
Y
outube link: https://youtu.be/EM4DuFy30dc

PRODUCT DETAILS
CUSTOMER PRAISE

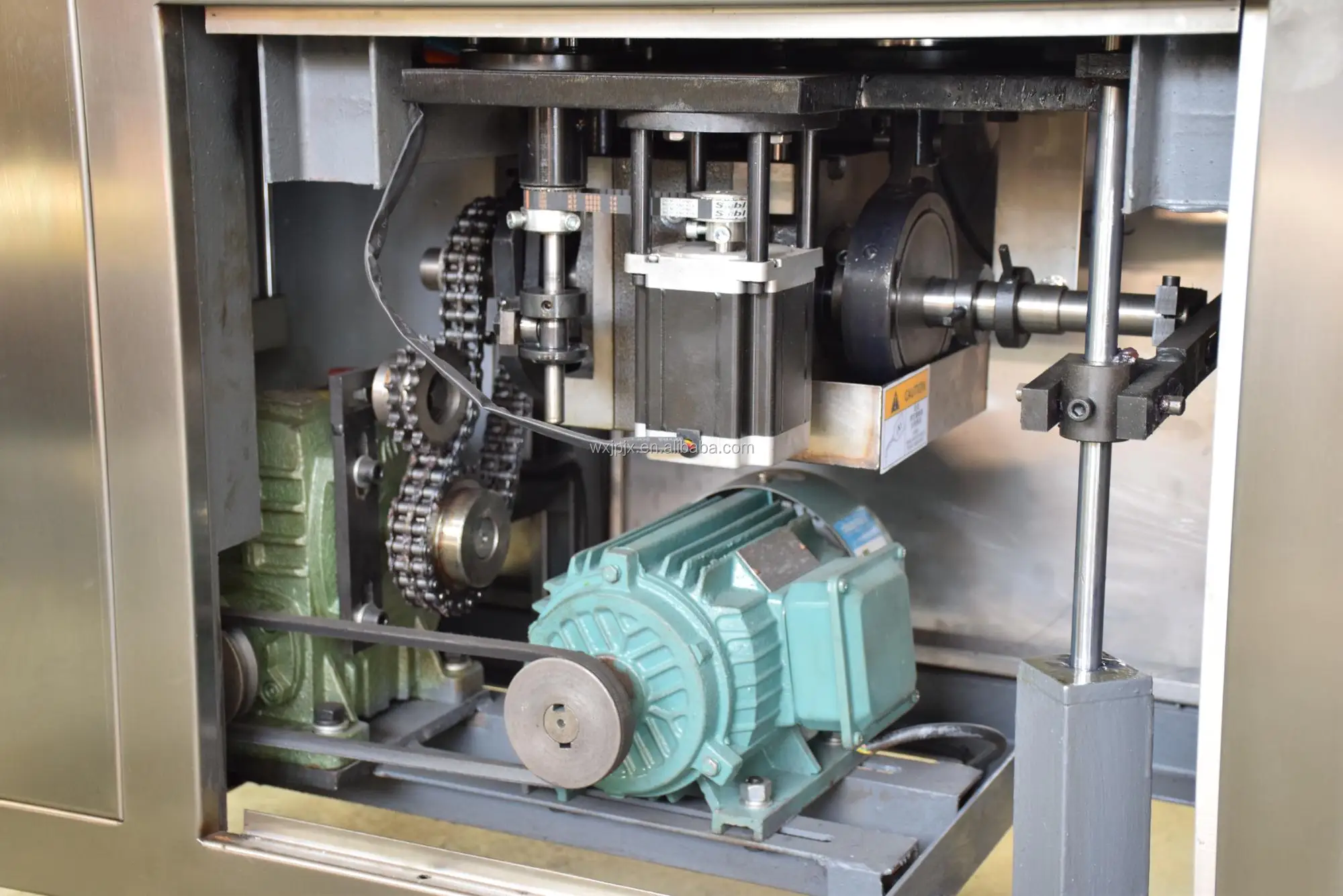

ELECTRICAL BRAND

Electronics used are world-famous brands so that a low failure rate and long span can be guaranteed.

PACKAGING & SHIPPING
ABROAD SERVICE SITE
ABOUT KINGPACK

Wuxi Jingpai Machinery Co., Ltd is a professional manufacturer of complete equipment for cosmetics, pharmacy, food and chemicals based in Wuxi, China. We are a high-tech company which is engaged in the design, manufacture, sales, services and marketing promotion of packing and mixing machines globally.

All machines are designed to meet customers specific requirements (GMP for pharmacy factory) and can work smartly and smoothly at customer's site. We have creative design team to come up with the newest technology at times. Our products own ISO9001 qualification system and CE certificate.

FAQ

<1> What should I do if we are not able to operate the machine when we receive it?
Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer's site to solve any problems.

<2> How could I get the spares on machines?
We will send extra sets of spares and accessories (such as sensors, heating bars, gaskets, O rings, coding letters). Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.

<3> How can I ensure that I get high-quality machine?
As a manufacturer, we have a strict supervision and control of every manufacturing step from raw materials purchasing, brands choosing to parts processing, assembling and testing.

<4> Is there any insurance to guarantee I will get the right machine I pay for?
We are an on-site check supplier from Alibaba. Trade Assurance provides quality protection, on-time shipment protection and 100% safe payment protection.
